Gizmo Vending Posted July 3, 2016 Share Posted July 3, 2016 I just picked up a DN501E and two of the narrow columns have the can shims jammed between the rotor and the sides. 1 column I might be able to free the shim, but the other has the shim jammed in there really bad. Is there any way to reverse the rotor to unloosen these, or could it be taken apart? Link to comment Share on other sites More sharing options...
QuikVend Posted July 3, 2016 Share Posted July 3, 2016 I've had the same problem in a 501e. There are 3 screws that hold the motor in. If you remove those, and pull the motor towards you, the rotor should be free to move and you can dislodge the shims. Link to comment Share on other sites More sharing options...
Walta Posted July 3, 2016 Share Posted July 3, 2016 If you run the motor test for that selection after the motor is moving unplug the machine when you can get the shim out. Walta Link to comment Share on other sites More sharing options...
lacanteen Posted July 3, 2016 Share Posted July 3, 2016 Just push the motor brake and rotate by hand backwards. You may also need to hold the switch to avoid damaging it. Link to comment Share on other sites More sharing options...
Gizmo Vending Posted July 10, 2016 Author Share Posted July 10, 2016 Thanks for the info. Removing the motor worked perfectly. Lacanteen, I'm not really sure where the brake is at though. Link to comment Share on other sites More sharing options...
AZVendor Posted July 10, 2016 Share Posted July 10, 2016 The brake is the metal lever that hugs the motor magnet. When the motor energizes the brake is pulled toward the magnet releasing the brake so the motor can turn. When it isn't energized you can press the brake which can release a jammed column. Link to comment Share on other sites More sharing options...

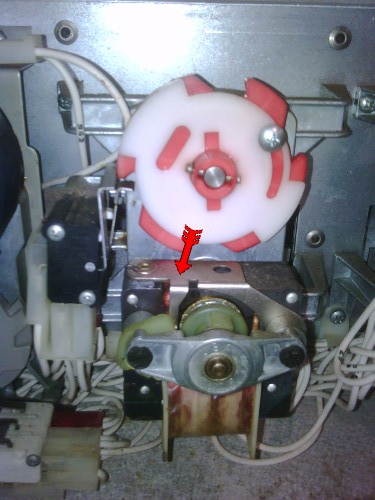

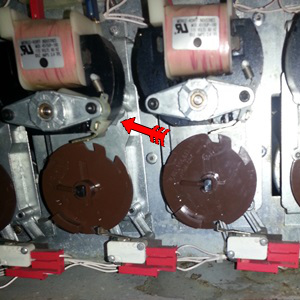

lacanteen Posted July 10, 2016 Share Posted July 10, 2016 Brake images. Link to comment Share on other sites More sharing options...
Southeast Treats Posted July 10, 2016 Share Posted July 10, 2016 When you reinstall the motor, be sure the rotor is in the original orientation, it is possible to reverse the rotor and you can have vend issues if you do... Link to comment Share on other sites More sharing options...
KychrisKy Posted July 12, 2016 Share Posted July 12, 2016 I took screws out one time when bottle was stuck but lifting up the motor Break is easier next time Link to comment Share on other sites More sharing options...
